Like all Batco Belt Conveyors, the UCX3 is built tough to perform, yet designed and engineered for gentle handling of delicate seeds and commodities.
Key Features
Direct X belt
Direct Xᵀᴹ Belt with Double Edge Seal - ensures a tight seal between the flashing and the belt without impeding grain flow
Redesigned hopper
Redesigned hopper - to keep grain where it should be and reduce spillage, the hopper features urethane seals, a stiffened hopper cloth, urethane flashing and a 32" parallel width for the full working length
AWD mover kit
AWD mover kit - redesigned with a built-in braking system, a 160° turning radius for tight yards, better traction, and a drop-and-go wheel move for quick set-up. Adds an extra 15” of discharge height when compared to previous models
Command center
Control everything at one location from the command center. Easily control the clutch, lights, key, and all hydraulics from the ergonomic command center
All farm commodity system
All-Farm Commodity System - belt brush, two belt scrapers and the turbo clean wash system
Easily adjustable new s-drive
All-new S-Drive - easily adjusted with normal tools, so you no longer run the risk of over-tightening the pinch roller bearings with the help of the belt take-up
Light kit
Standard with working light kit

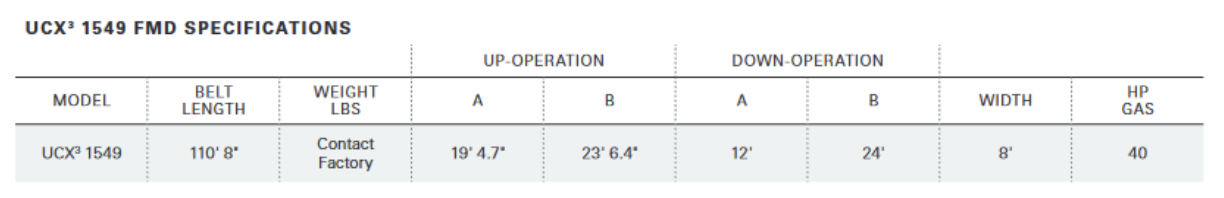

Specifications
Engine
Pinch s-drive 40 HP EFI engine
U-Trough
10 inch U-Trough
Belt
15” belt
Length
49’ length
Capacity
Capacity up to 10,000 BPH (340 TPH) with canola under ideal conditions
Capacity
Capacity up to 12,500 BPH with wheat and peas
