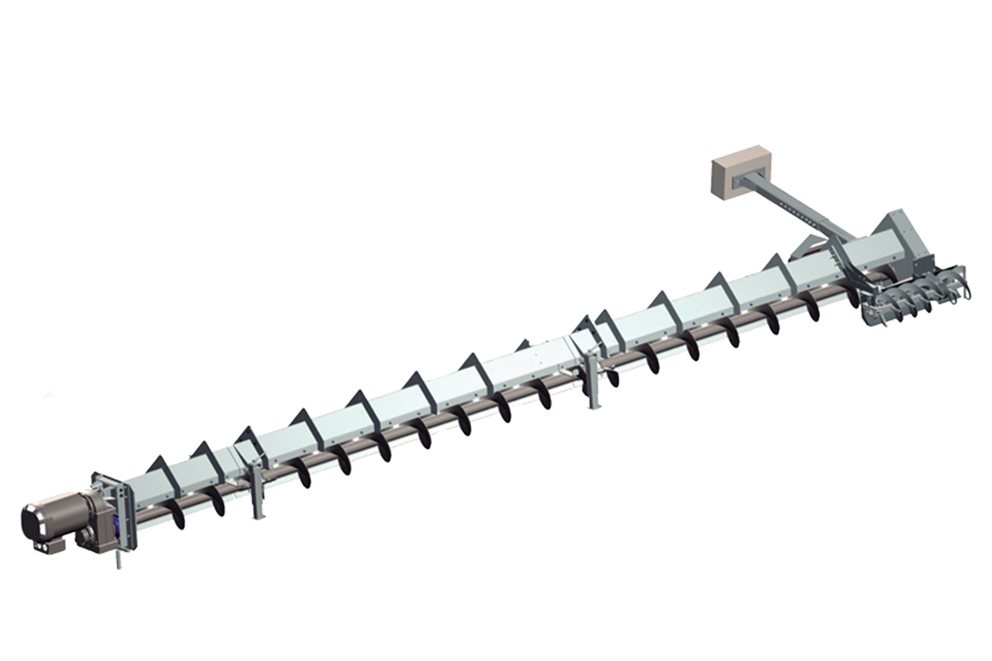

The AGI Sweep Auger has been designed for the final release of grain stored in the silo. It is composed of several different modules:
a release spout – which houses the motor reducer and is the point at which the product is released;
the body – which is constructed from “V” shaped sheets.
There are two drive types:
Manual drive, where the thread is part of the internal Helicoidal turning action, directs the grains to the center of the silo, where they are manually pushed in a circular fashion;
and automated drive (optional), which allows for a traditional circular thread movement.
It uses self‐lubricating plugs and protected bearings that offer added security. It has a modular design and can be installed in a silo of any size.
Image Gallery
Automated Activation System
Support Wheel Adjustment System
Motor Reducer

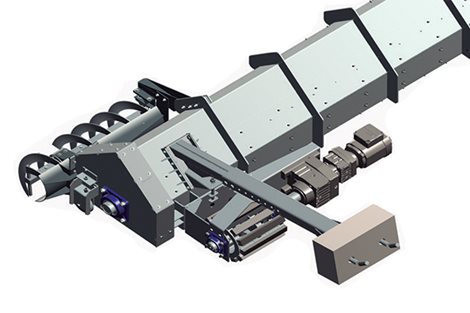

Automated Activation System
An optional automated activation system can be installed.

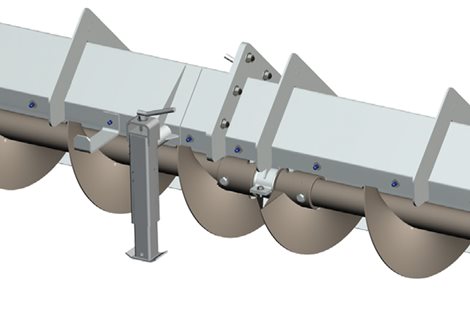

Support Wheel Adjustment System
The support wheel adjustment system makes it possible to adjust to any variation in the floor level of the silo storage space.

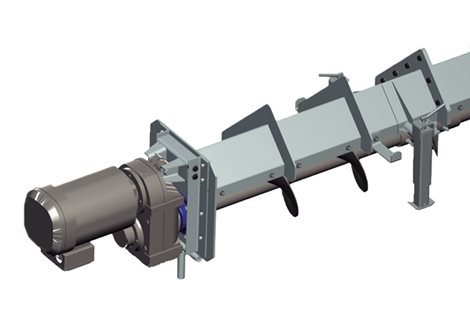

Motor Reducer
Motor reducer with fixed parallel axels secured on simple, easy‐to‐use screw‐fix
structures.
