The GTX² features a redesigned mover kit to make set-up as easy as possible. A breeze to move around the yard thanks to its joystick steering, the self-propelled kit also automatically adjusts the intake height when the auger discharge is raised or lowered.
Key Features
Self-propelled heavy-duty mover
This Self-Propelled (SP) heavy-duty mover kit features all-wheel drive, hydraulic steering, and rugged all-terrain tires capable of handling tough terrain and yards. This narrow, more compact design allows better access to larger diameter hopper bins and offers drive controls situated closer to the motor to further increase reach under large hoppers. This new mover kit allows for a much sharper turning radius for quicker and easier repositioning. Hydraulic steering comes standard
Poly hoppers
Poly hoppers are durable and flexible providing easy grain handling with minimum spillage.
Steel intake hopper
The steel intake hopper is self-leveling and has a tapered transition that works with the flighting to direct the flow of grain from the hopper into the auger. The steel intake hopper has a removable access plate for easy cleanout and the flighting features Wear Edge Technology™. The steel intake hopper comes complete with a tow hitch. An optional wheel kit is available and allows the height to be adjusted for positioning
Electric clutch with remote control
The electric clutch with remote control starts and stops the auger without shutting down the gas engine drives and is easy to install.
Reversing gearbox
The reversing gearbox allows the auger to be reversed at all angles and includes the linkage and lockout for easy cleanout.
Built for durability
- 12 ga tubing on 10" models
- Heavy-duty motor mount designed to handle high horsepower and heavy auger engines, giving you the flexibility to use the engine you want
- The flighting is reinforced with Wear Edge Technology™, which provides an extra layer of steel welded to the edge at critical wear points to extend the life of your flighting
- Purpose-built hose routing provides a cleaner, sleeker look and protects the hoses from the elements
- Powder coat paint protects and provides a long-lasting durable finish
- Heavy-duty hardened steel sprockets and high-speed roller chain are sized to match auger length and diameter, to help your auger perform at its best
- Lubricated upper drive extends the life of sprockets and drive chain
- 10” models use square, one-bolt flight connections to ensure the flighting maintains proper alignment for smooth operation
Designed for high capacity
- Double-banded belts are molded together as one to transfer maximum power from the engine to the gearboxes, to maintain consistent speed when the auger is running.
- To ensure optimal performance with longer units, the 10" STX² in 46' and 51' lengths uses triple banded belts.
Developed for ease-of-use
- Self-leveling motor maintains proper tension at all heights, so there is no need to reset the belt tension once the auger is raised into position
- Electric clutch with remote allows you to start and stop the auger without shutting down the gas engine drives

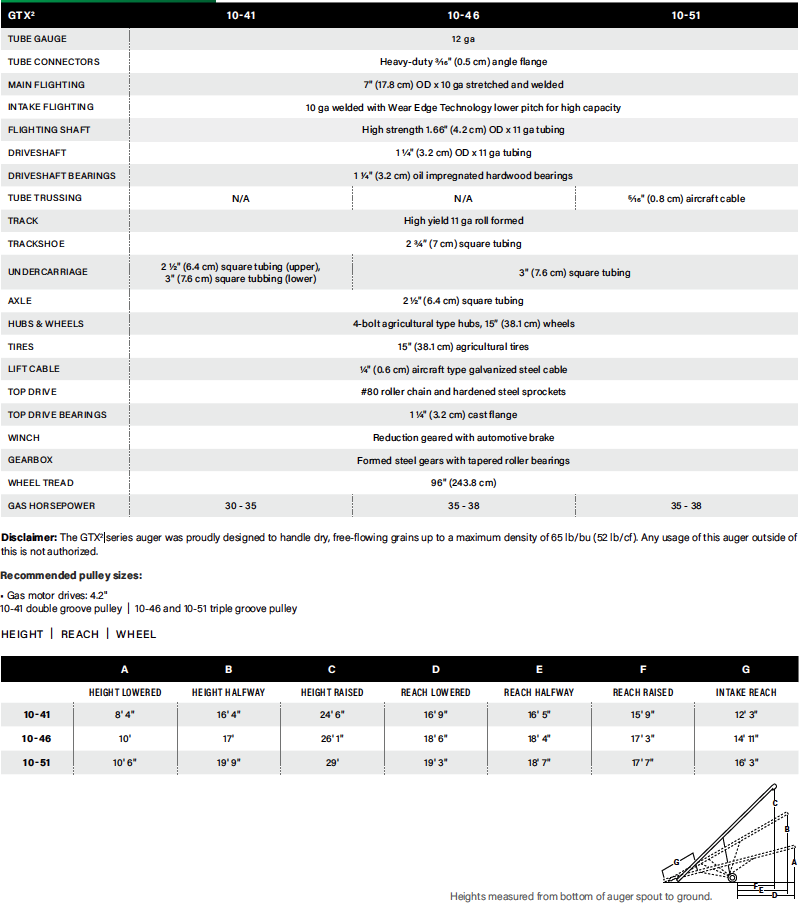

Specifications
GTX² 10
BPH
Up to 5,500 BPH
Length
41', 46' and 51' lengths
Gauge
12-gauge tube - 7-gauge flighting
