AGI Westeel’s ULC S601 Fuel-Vault® dual wall integral contained aboveground storage tanks come in numerous standard options and compartment configurations. They can also be customized to the specific needs of the application.
Typical Applications
- Retail petroleum facilities
- Fleet and facility refueling facilities
- Aviation
- Power generation
- Farm and commercial agriculture
- Industrial
- Oil and gas
- Forestry
- Mining
- Marine
- Recreational
- Rental applications
Accordance Compliance
- CAN/ULC - S601 current version
- National/provincial fire code compliant
- Enviromental farm plan compliant
- Alberta energy regulator - directive 055

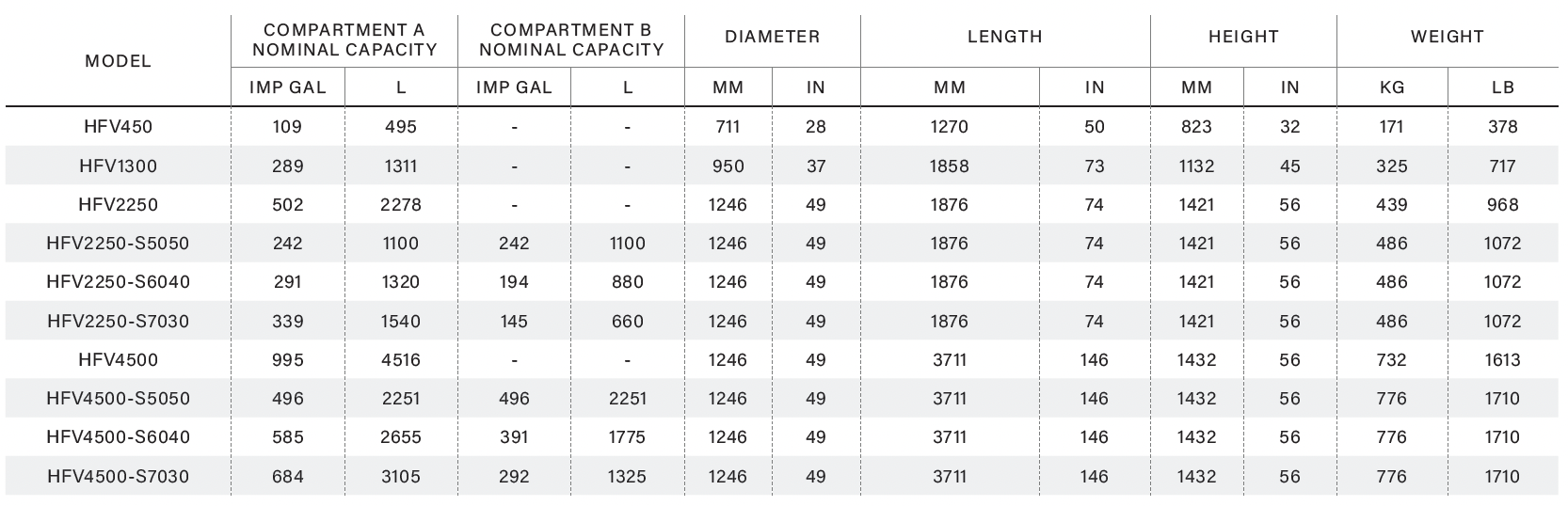

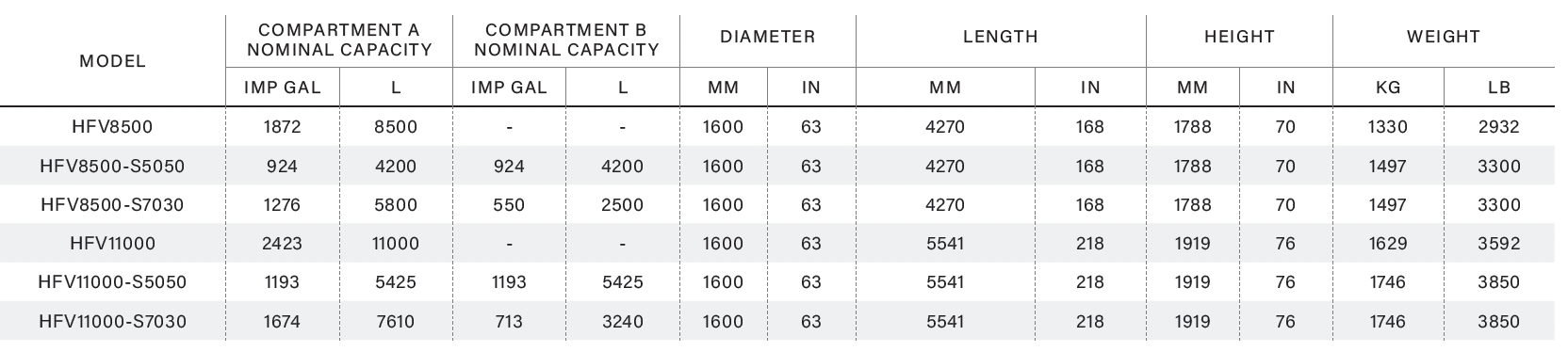

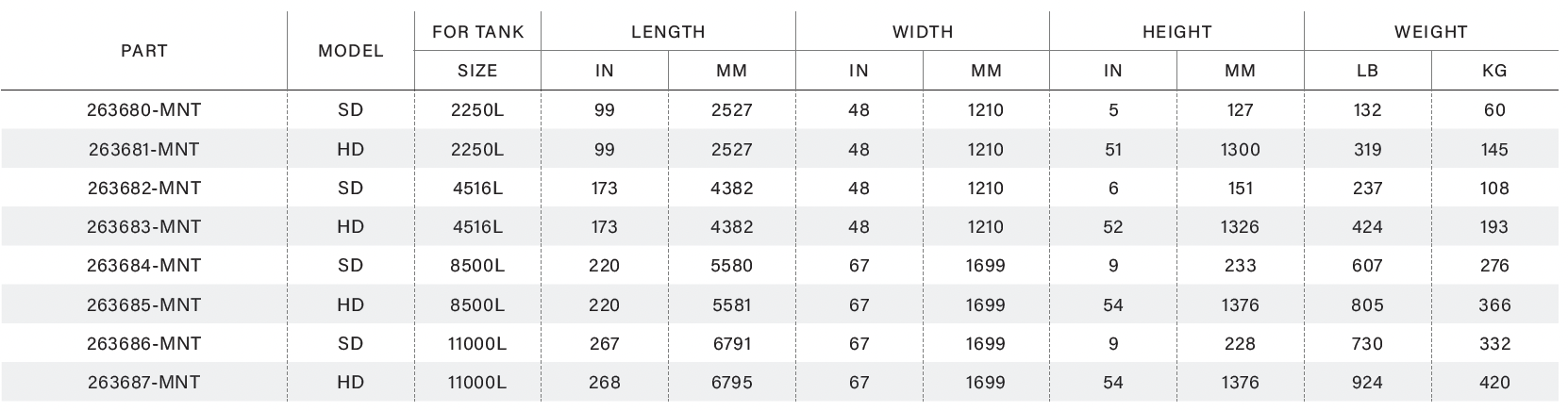

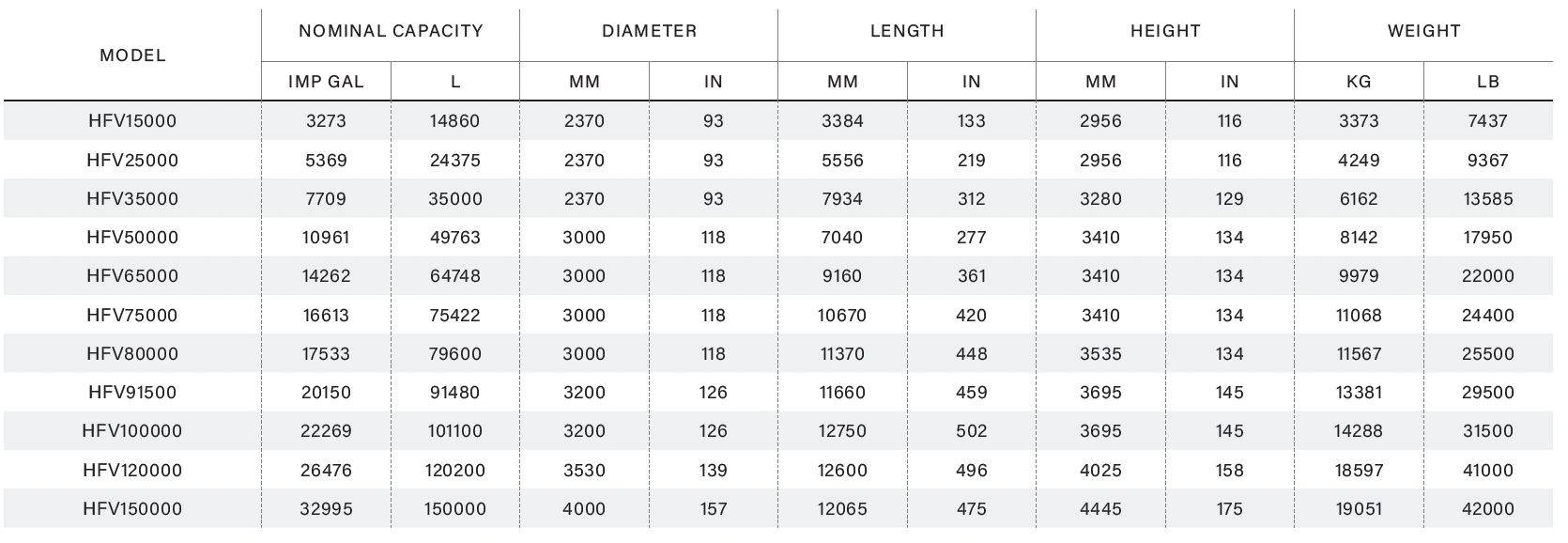

Specifications
Important Features:
(Varies by tank capacity)
- Durable steel construction
- Secondary shell provides a minimum 100% containment
- Large mouth spill box with fill, gauge and drain openings with a lockable weatherproof cover for tanks larger than 11000L and available upon request for tanks smaller than 11000L
- Weather and corrosion resistant exterior coating
- Interstitial space inspection port
- Emergency pressure surge vent
- Gauge stick/gauge chart and holder for confirming volume included with tanks larger than 4500L
- Heavy-duty lifting lugs for off-loading and positioning with ease
- Canstrut tabs on one head to attach equipment options
(Varies by tank capacity and design parameters)
- Overfill prevention devices
- Anti-siphon prevention
- Large mouth integral spill boxes
- Insulation and heating equipment
- Catwalks
- Ladders/stairs
- Split tanks
- Dispensers
- Cardlock systems
- Custom piping
- Custom pumping equipment
